Is AutoCAD Architecture Right for You?

Intelligent Object-Based Drafting for Architectural Construction Documents

AutoCAD Architecture extends the AutoCAD drafting environment with architecture-specific AEC objects — walls, doors, windows, stairs, and room boundaries — that carry construction logic rather than existing as simple line geometry. Architects, building designers, and architectural technicians use it to produce floor plans, building elevations, building sections, and reflected ceiling plans where objects understand their spatial relationships: a door belongs to a wall, a window schedule tracks every window instance in the drawing set, and a room tag calculates area from the bounding geometry it is placed within. This object intelligence is what separates AutoCAD Architecture from standard AutoCAD drafting, where the same drawing requires manual maintenance of every dependent element when the design changes.

AutoCAD Architecture is used primarily during the design development and construction documentation phases of a building project, where schematic geometry must be resolved into dimensioned, annotated, and scheduled drawings for permit submission and contractor use. It connects to structural and MEP consultant files through XRef-based coordination, accepting reference drawings from AutoCAD MEP or standard AutoCAD files, and produces the full construction document set — floor plans, detail sheets, door and window schedules, room finish schedules, and keynoted section views — within a DWG file environment that consultants and contractors can receive directly. For project scopes where full parametric BIM coordination across disciplines is required and change management must propagate across a large multi-user team, Revit provides a more integrated model environment; AutoCAD Architecture is the better fit where granular 2D drafting control, DWG interoperability, and a familiar AutoCAD interface are the priority.

AEC Object Logic, View Automation, and Documentation Control in AutoCAD Architecture

Placing Walls, Doors, and Windows That Respond to Design Changes

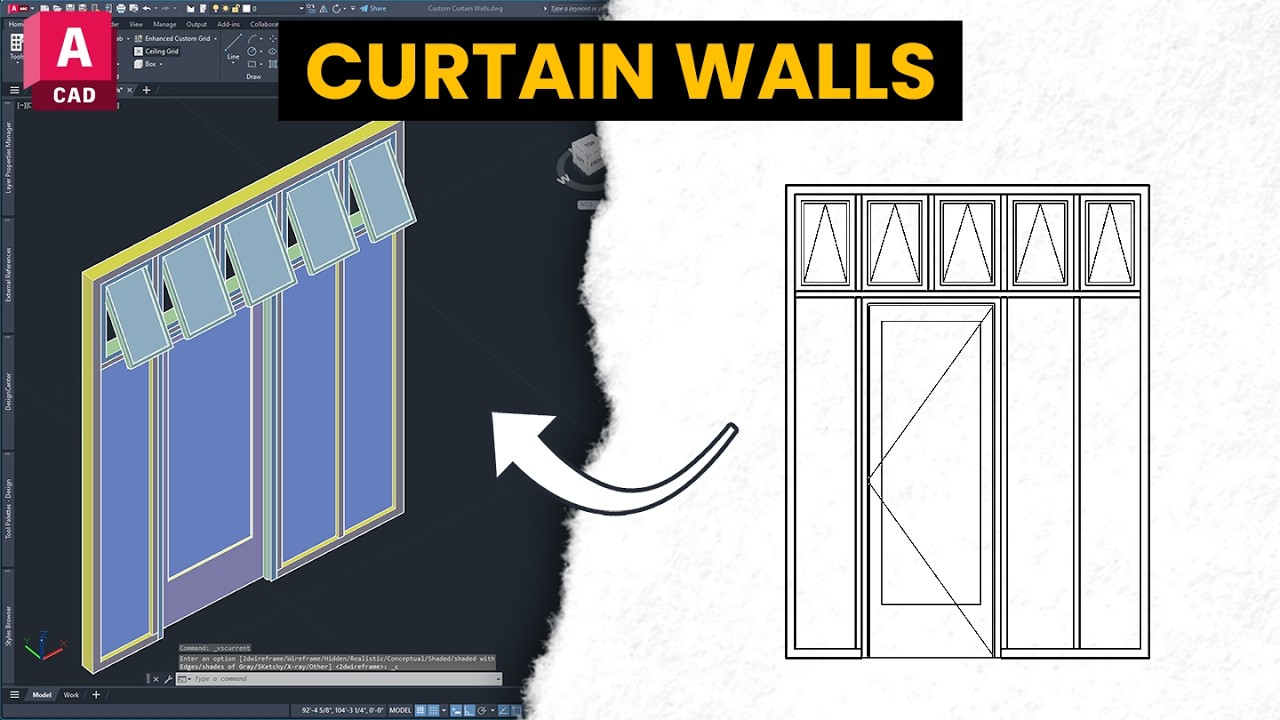

The core drafting unit in AutoCAD Architecture is the AEC object — a wall, door, window, or stair that behaves according to architectural rules rather than as static geometry. When a wall is moved, any door or window hosted within it repositions automatically; when a door style is reassigned, all instances of that door type throughout the drawing update simultaneously; when a wall is deleted, the hosted openings are removed without leaving behind orphaned geometry. The Wall tool defines parametric width, height, and component layering (structural stud, insulation, and finish layers each with individual thickness values); the Door and Window tools insert openings that cut the host wall automatically and close the cut if the object is removed. This removes the need to manually edit wall lines, hatch patterns, and opening geometry each time a partition layout changes — a step that accumulates significant rework time across iterative design development phases.

Generating Plans, Elevations, and Sections from One Model Without Redrawing

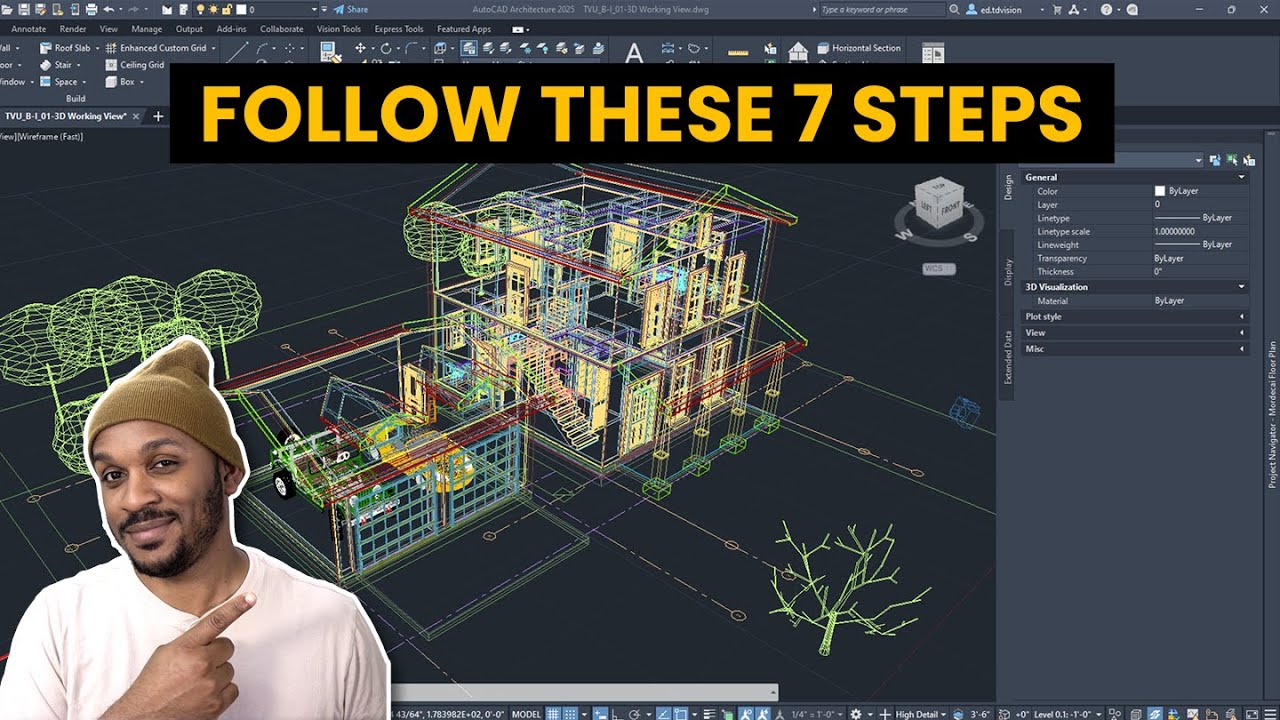

In standard AutoCAD, floor plans, building elevations, and building sections are maintained as separate drawing files that require manual updates when the design changes. AutoCAD Architecture generates these views directly from the 3D AEC object model through automated view extraction tools that place plan, elevation, section, and ceiling grid views on drawing sheets without manual redrawing. The Multi-View Coordination system links these extracted views to the source model, so changes made in plan — a wall repositioned, a window removed, a partition extended — reflect in the corresponding elevation and section views. On projects with many drawing sheets, this closes a primary coordination gap where plan revisions fail to carry through to dependent views, producing conflicts that must be caught and corrected before permit submission.

Controlling How Objects Appear Across Different View Types and Drawing Scales

Architectural drawings require the same object to be presented differently depending on view type and scale: a wall at 1:100 renders as a simple filled outline, while the same wall at 1:20 shows component layers with material designations and fire-rating annotations. The Display System in AutoCAD Architecture manages this through Display Representations — named configurations that define which components of an AEC object are visible and how they are rendered at each view type (Plan, Reflected, Section, Model, Elevation). A single wall object holds all these representations and switches between them based on the active drawing configuration, so the object is defined once and the software handles view-specific presentation without maintaining separate geometry for each scale or view type. Display configurations are set at the drawing or viewport level, enabling a single sheet file to contain plan, section, and detail views of the same objects at different representations simultaneously.

Keeping Door, Window, and Room Schedules Current When Geometry Changes

Door schedules, window schedules, and room finish schedules in a construction document set must reflect the current model state at all times — a requirement that in standard AutoCAD drafting means manually editing tables after every design revision. AutoCAD Architecture links schedule tables directly to the AEC object data in the drawing: adding a door adds a row to the door schedule; changing a window type updates the schedule entry; redefining a room boundary recalculates the room area. The Space and Area tools attach room tags to bounded geometries that compute floor area from the enclosing walls, and the property set system stores additional data on each object — fire rating, hardware finish, glazing specification — that feeds directly into schedule columns. The result is that the schedule is not a separate table but a live query against the drawing, accurate as long as the model is current.

Iterating on Building Geometry Using Parametric Constraints

Design development involves repeated changes to partition locations, room dimensions, and structural grid positions where maintaining design intent relationships — minimum clearances, fixed offsets, proportional dimensions — by hand is error-prone. AutoCAD Architecture supports this through Parametric Constraints that define geometric and dimensional relationships between building elements: a partition can be constrained to remain a fixed distance from a structural column, or a door can be set to maintain a minimum clearance from a wall end. When the constraint driver changes, dependent elements update automatically to maintain the defined relationship. This operates at the object-relationship level appropriate for architectural layout work; for complex parametric solid modeling or generative geometry, tools such as Revit with Dynamo or dedicated parametric design platforms provide a more extensive constraint environment.

Assembling Construction Details from a Standard Architectural Component Library

Construction detail drawings require standard architectural components — door and window frames, stair railings, roof edge conditions, wall anchors, accessibility fixtures, and equipment cutlines — that must conform to office drafting standards and be placed at drawing scale with correct material hatching and linetype assignments. The Detail Component Manager in AutoCAD Architecture provides access to over 8,800 architectural components organized in hierarchical databases searchable by type and subcategory. Components carry AIA-consistent material hatching and layering, and the database structure lets a drafter locate, insert, and scale a component in fewer steps than assembling the same detail from individual geometry. The library covers common residential and commercial construction assemblies; firms with non-standard details, regional construction methods, or proprietary system specifications typically supplement it with a custom office library.

Enforcing CAD and Layer Standards Across a Multi-Drawing Project

Consistent layer naming across all drawings in a project set is necessary for XRef coordination, consultant file management, plotting, and contractor legibility. AutoCAD Architecture assigns layers automatically based on AEC object type — walls generate on A-WALL, doors on A-DOOR, windows on A-GLAZ — following AIA or National CAD Standards (NCS) layer naming conventions without requiring manual layer assignment during drafting. The CAD Standards tools extend this to text styles, dimension styles, and linetype definitions, checking open drawings against a defined standards file and flagging deviations for correction. For multi-person offices where different staff produce different drawing sheets that are later assembled into a coordinated set, this prevents the layer proliferation and naming inconsistencies that create conflicts during XRef attachment and final plotting.

Tracking Drawing Revisions Across Project Phases

Construction projects that span weeks or months involve repeated revisions, permit resubmissions, and addendum sets where drawing history must be traceable for responding to RFIs, issuing ASIs, and managing change orders. The Drawing Version Management tools in AutoCAD Architecture support check-in and check-out of drawing files with version comments, providing a record of what changed between revision cycles and enabling reversion to earlier versions when a revision introduces coordination errors. This is most useful in small-to-medium firm environments where one or two staff manage the full drawing set; for larger teams requiring concurrent multi-user access and real-time coordination across disciplines, a dedicated project management or BIM collaboration platform typically provides a broader version control environment than the built-in tools are designed to support.
